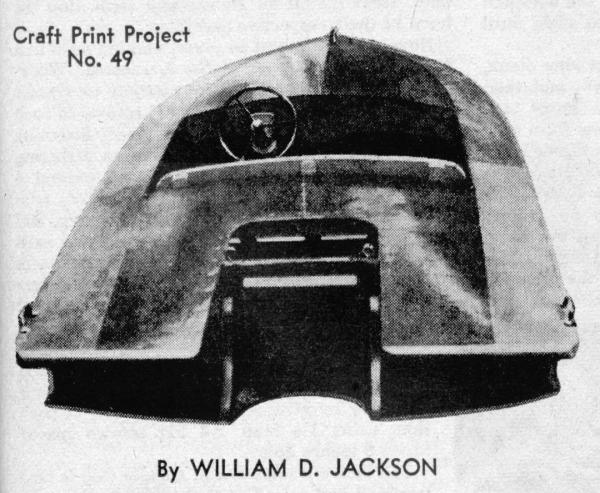

Doodle Bug
A trim single-cockpit outboard hydroplane
- Category
- Hydroplanes
- Designer
- William D. Jackson
- Published
- Science and Mechanics, p. 133
- Craft Print
- 49
A trim single-cockpit outboard hydroplane with a new type of convex bottom and non-tripping chines, combining remarkable speed with excellent maneuverability. Any outboard from 9 to 25 hp will power it, and two prototypes were built and tested before publication.
Specifications
- Construction
- Oak and fir frames, waterproof plywood covering, convex bottom with non-tripping chines and transom tails
- Power
- Outboard 9–25 hp
Downloads

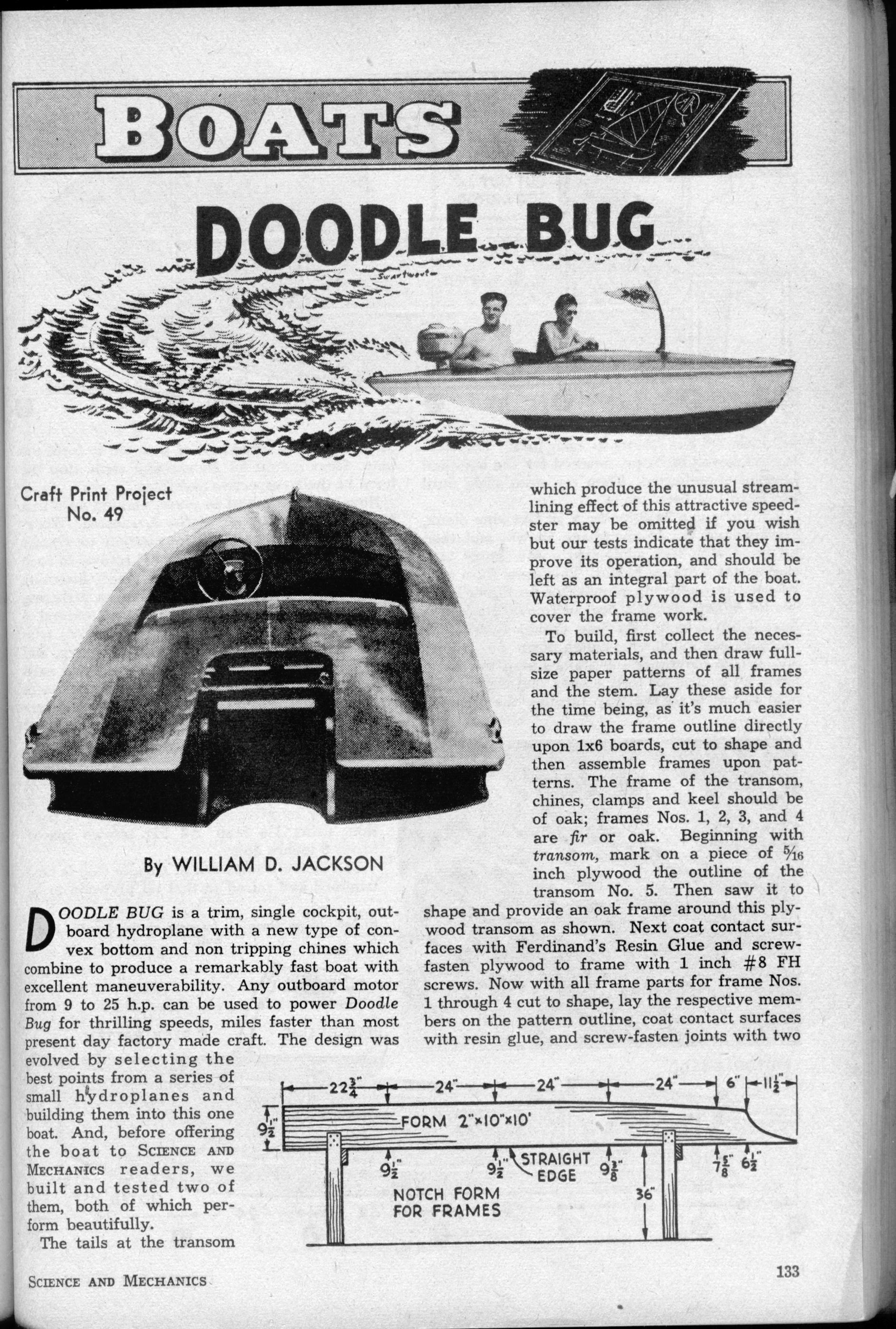

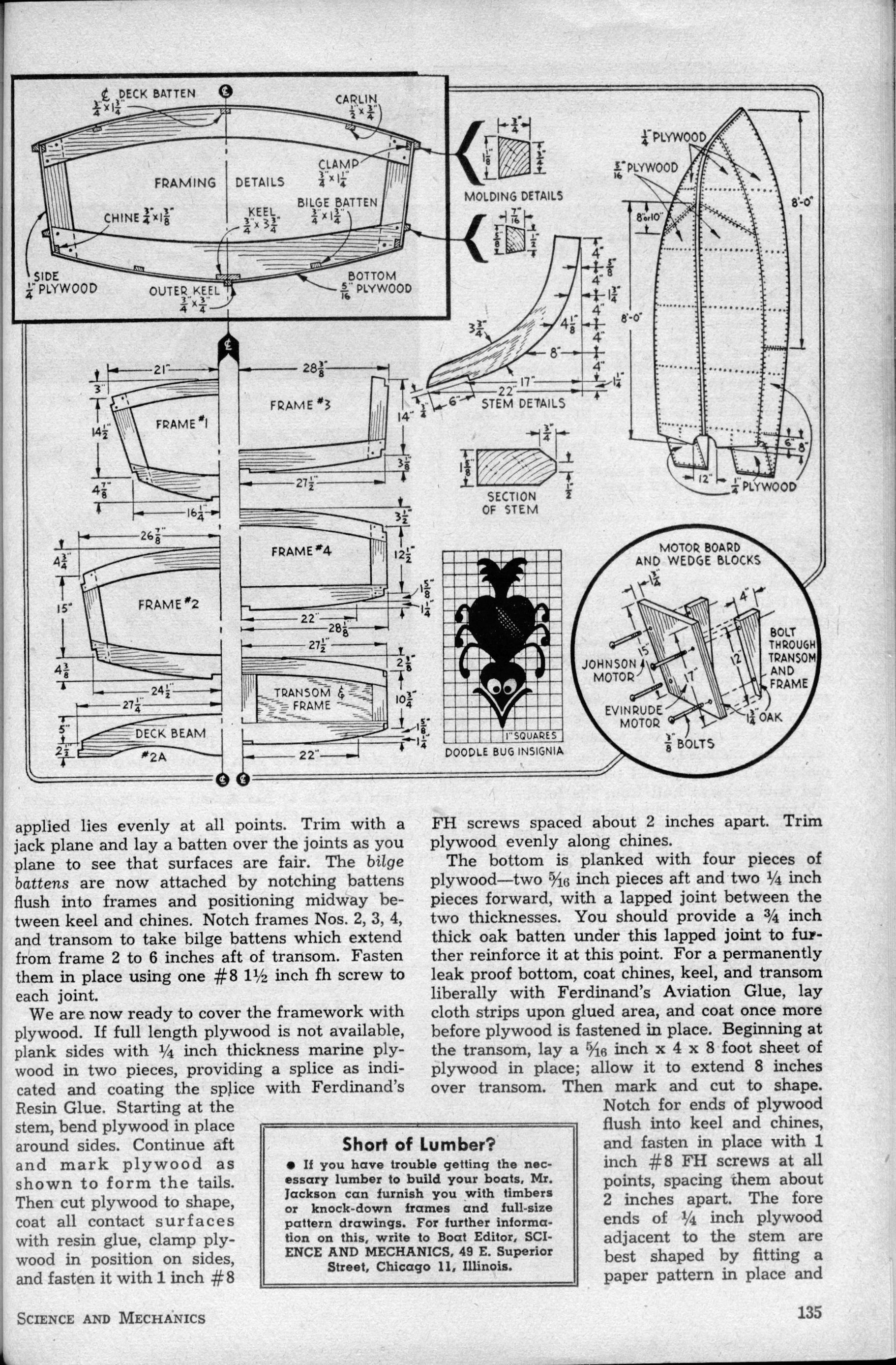

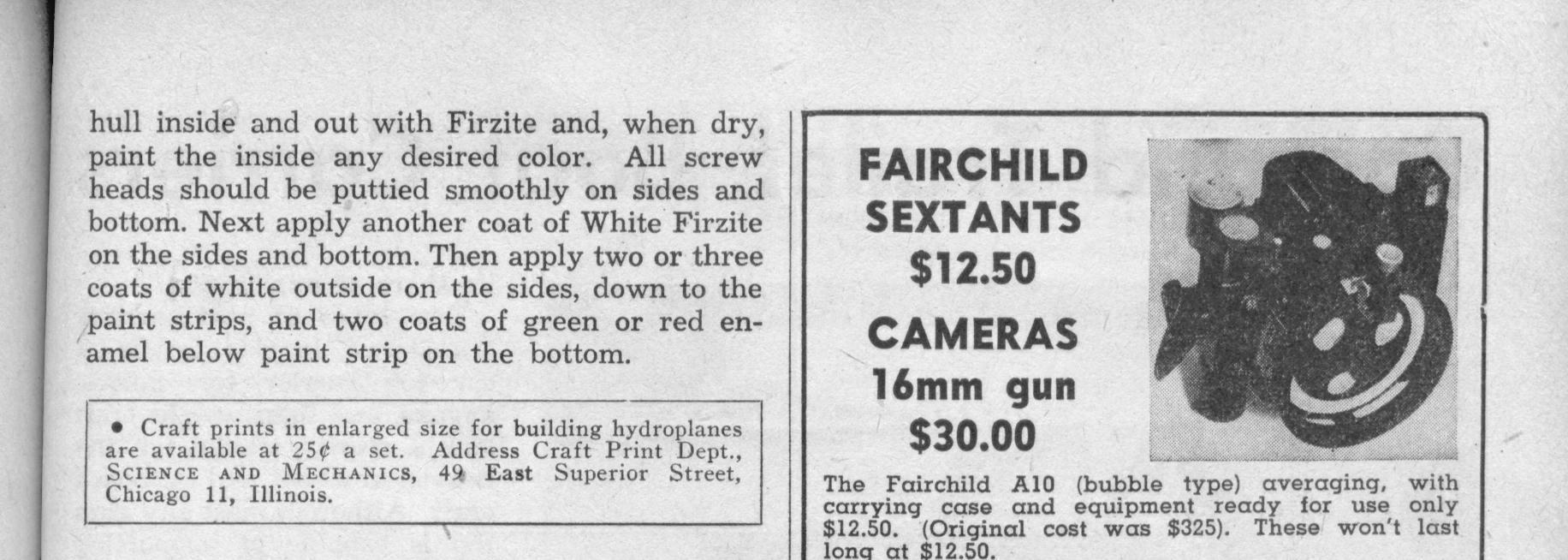

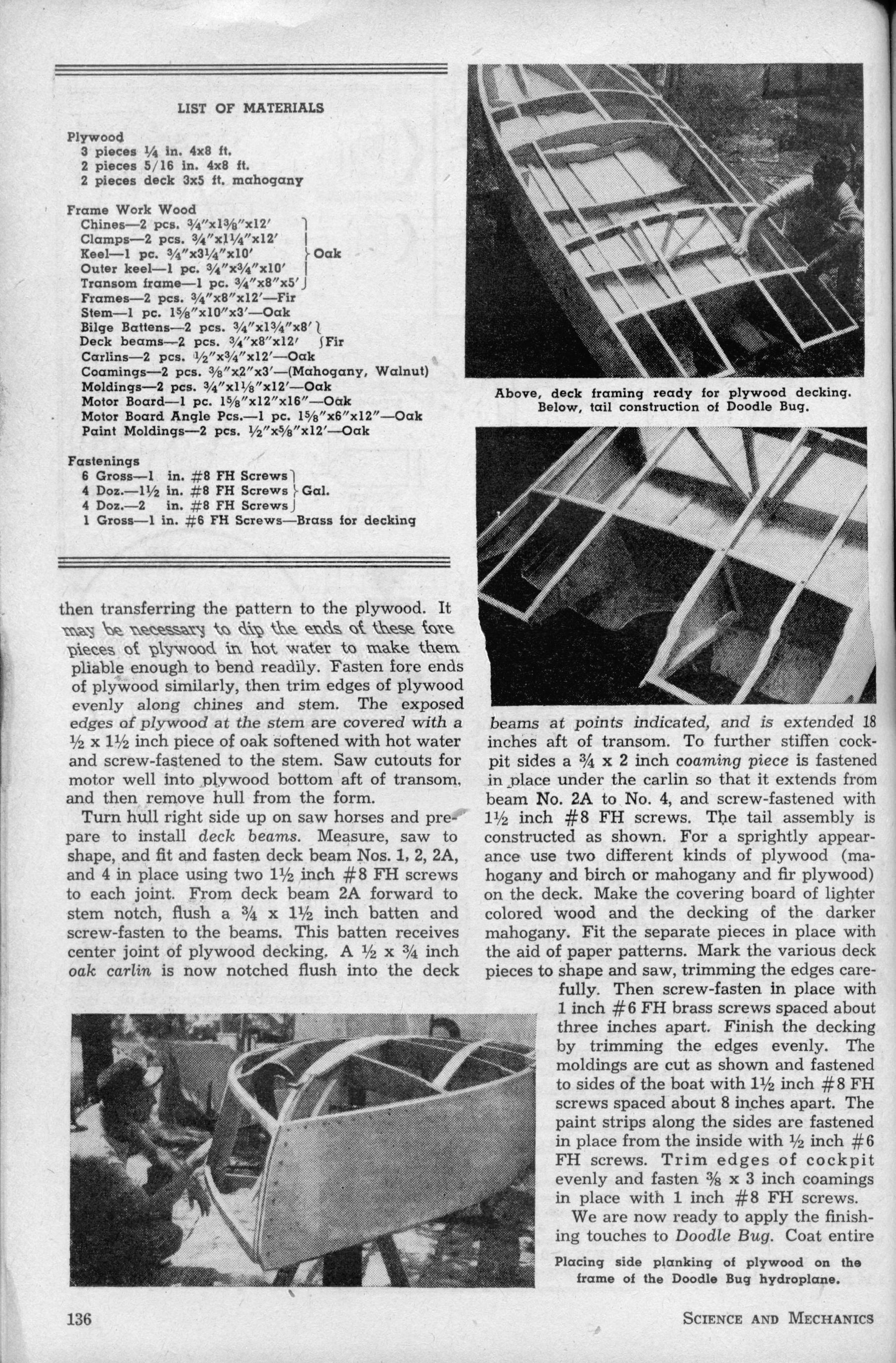

Plan sheets 11
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
