Eager Eve
Efficient outboard cruiser with the motor concealed in a well
- Category
- Cabin Cruisers
- Designer
- William D. Jackson
- Published
- Boat Builder's Handbook, p. 75
- Craft Print
- 175

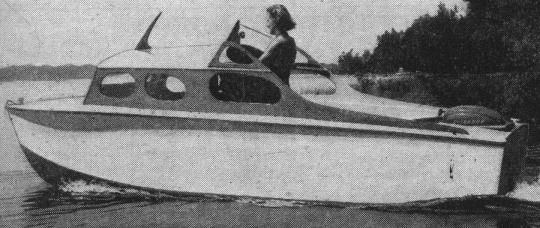

From 50 feet away you'd swear Eager Eve was a luxury inboard cruiser: a cover hides the 25 hp outboard in a well. It cruises inland waterways, pulls water skiers and trailers easily, reaching 22 mph with one aboard and about 30 mph with a 33 hp motor.
Specifications
- Length
- 18 ft
- Beam
- 6 ft 1 in
- Depth
- 40 in forward, 28 in aft
- Weight
- 600 lb (hull)
- Capacity
- Sleeps 2; seats 4
- Construction
- 3/8 in. plywood planking, vee-convex bottom, developable surfaces
- Power
- Evinrude 25 hp Big Twin or Johnson; 22 mph, top speed 30 mph with 33 hp
Downloads

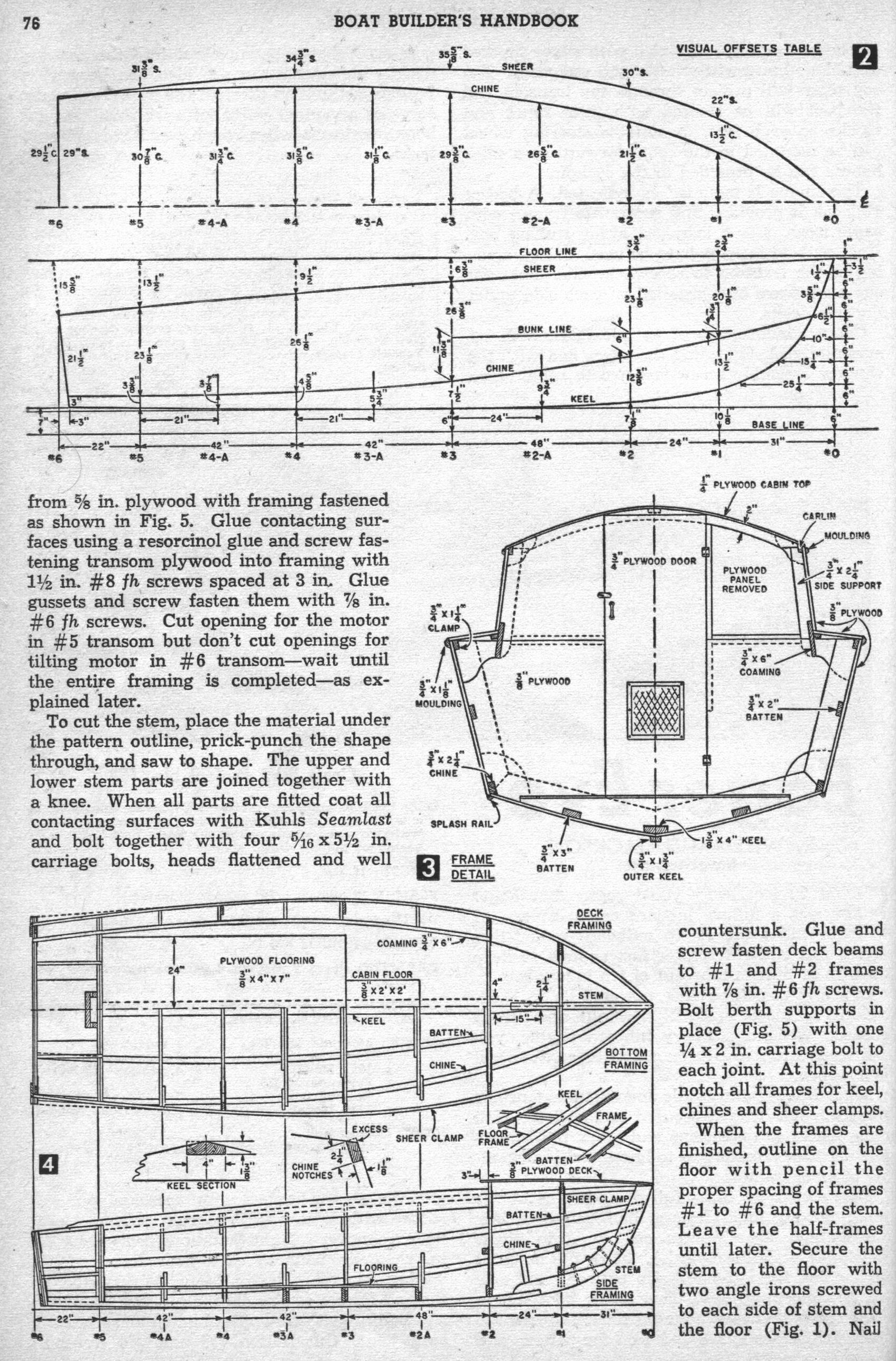

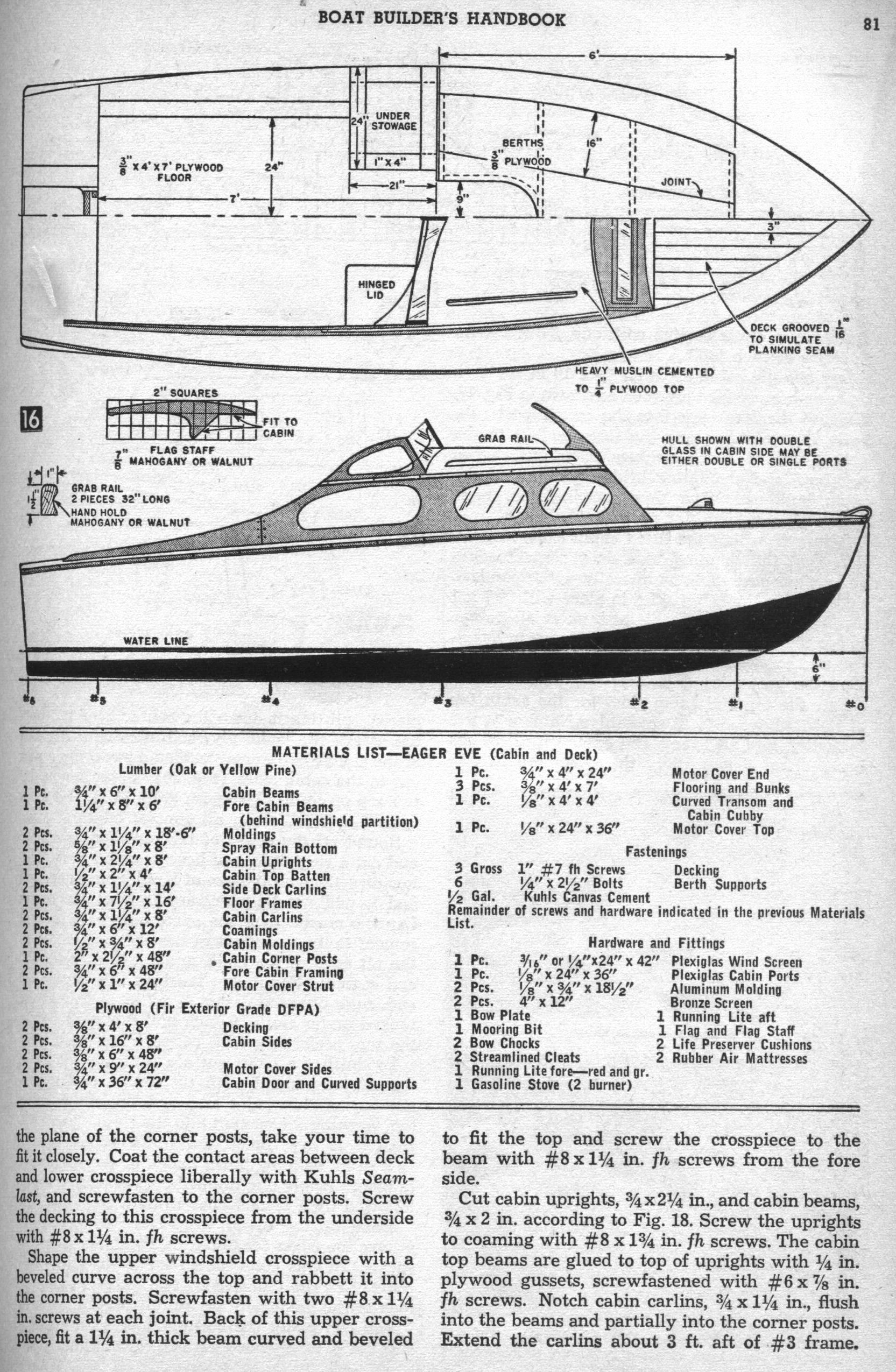

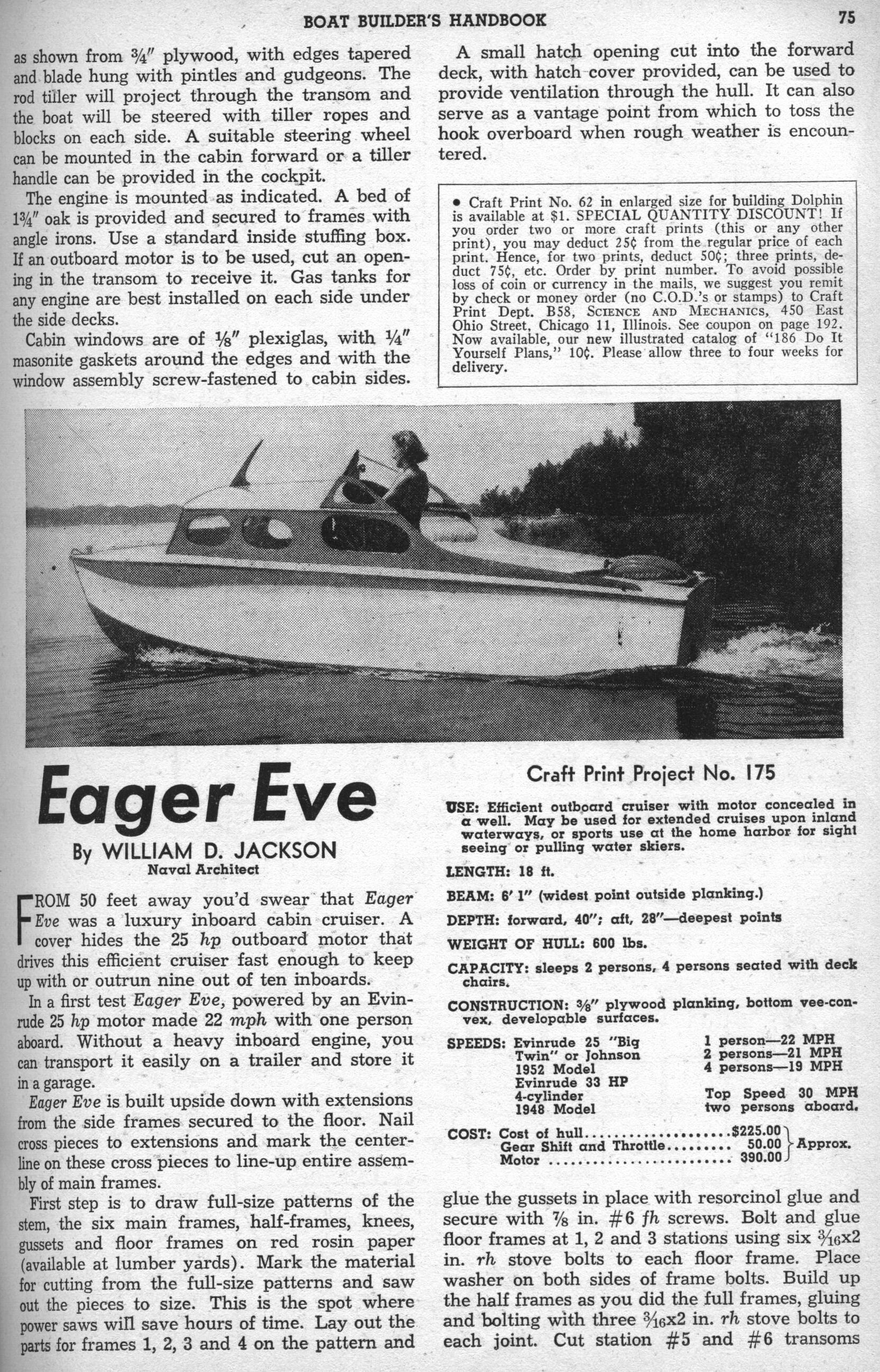

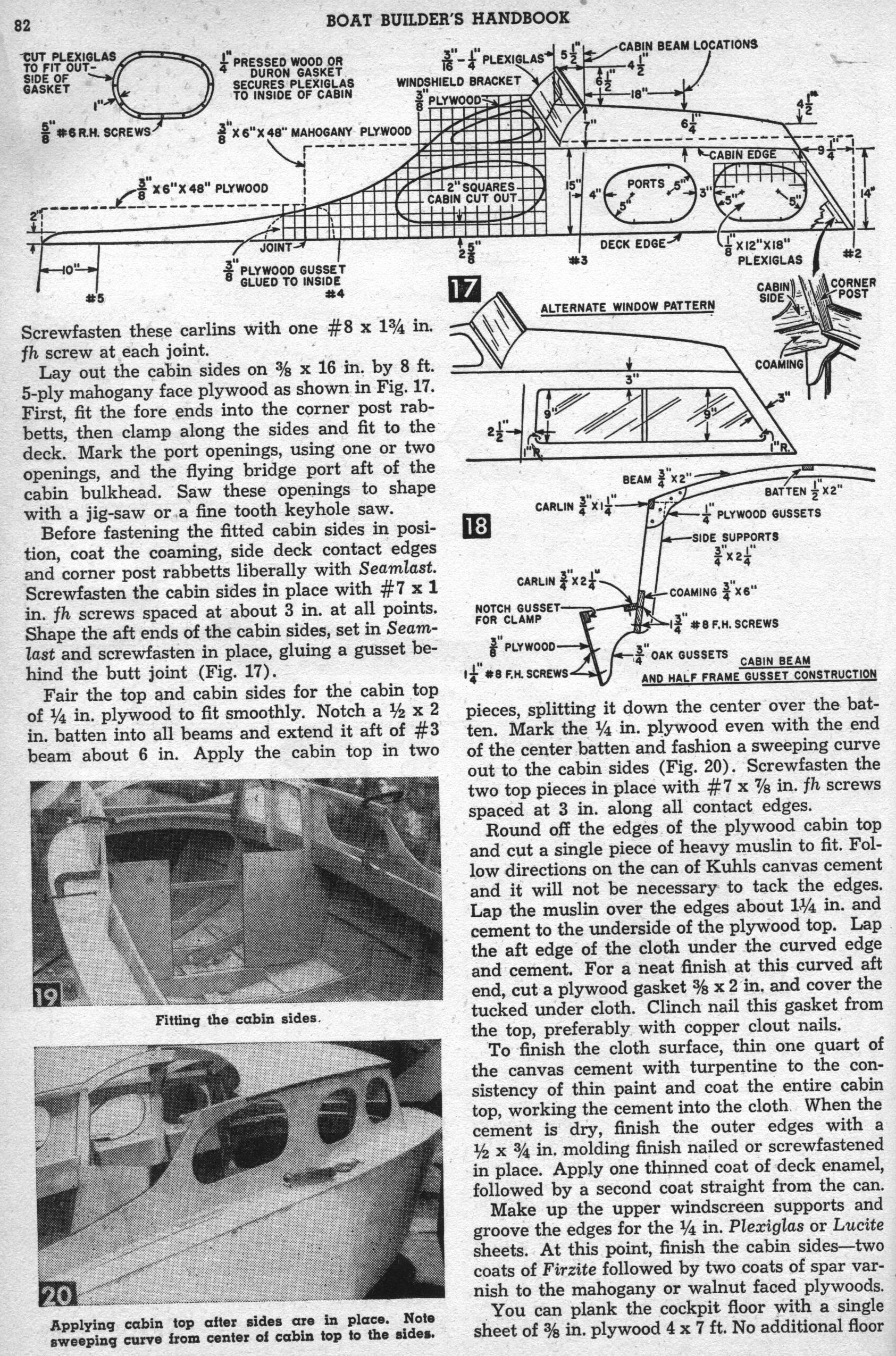

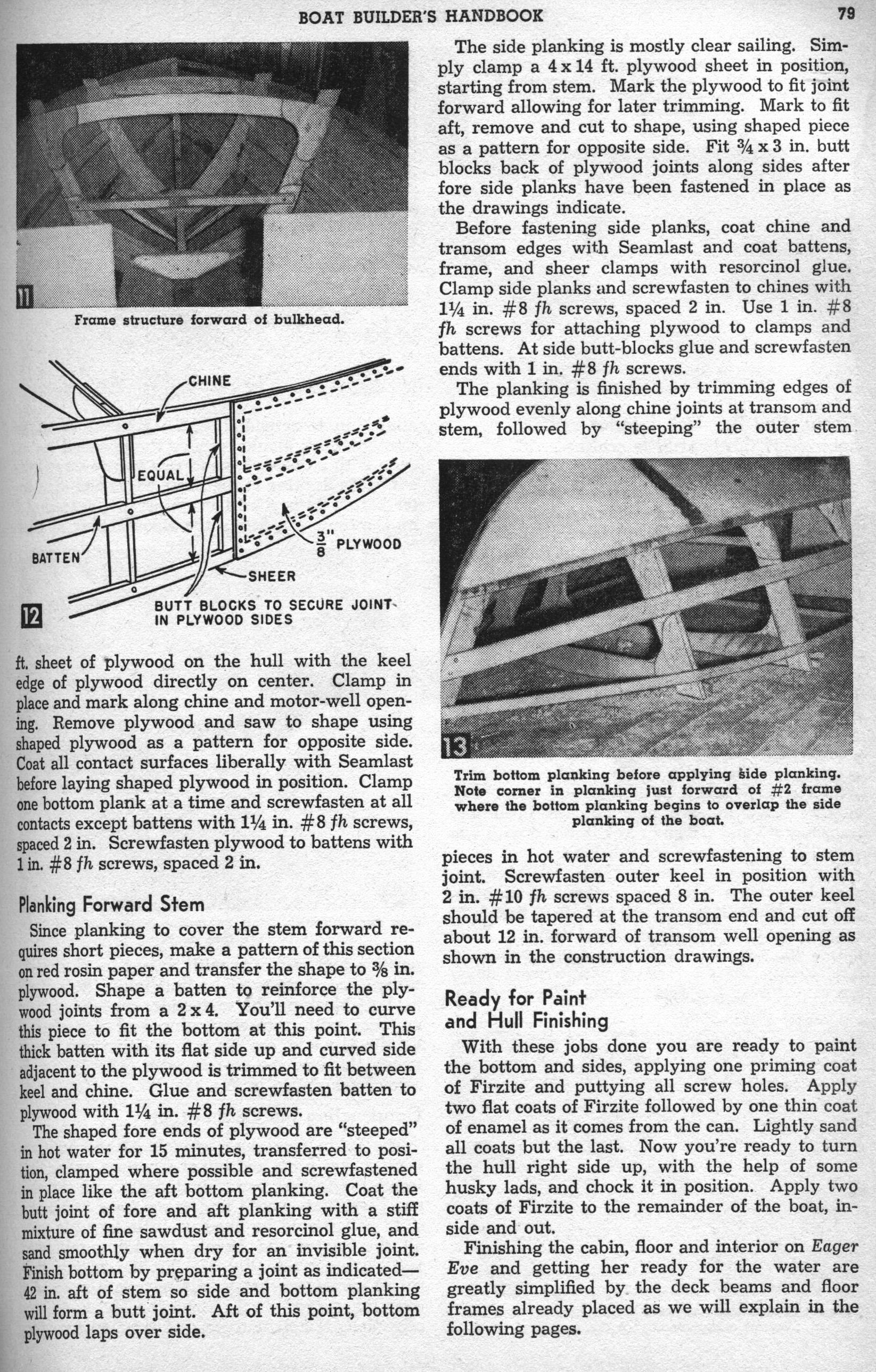

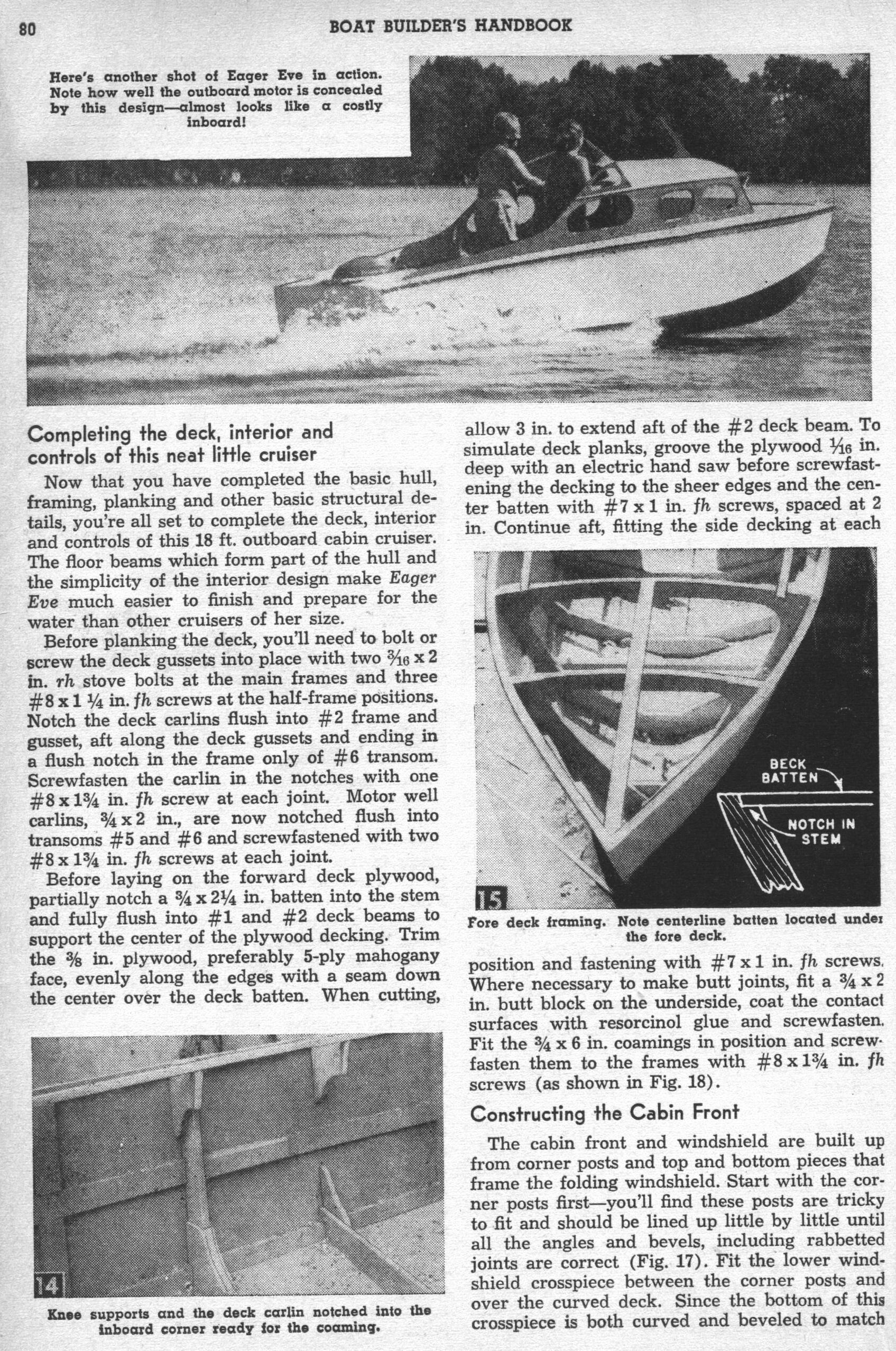

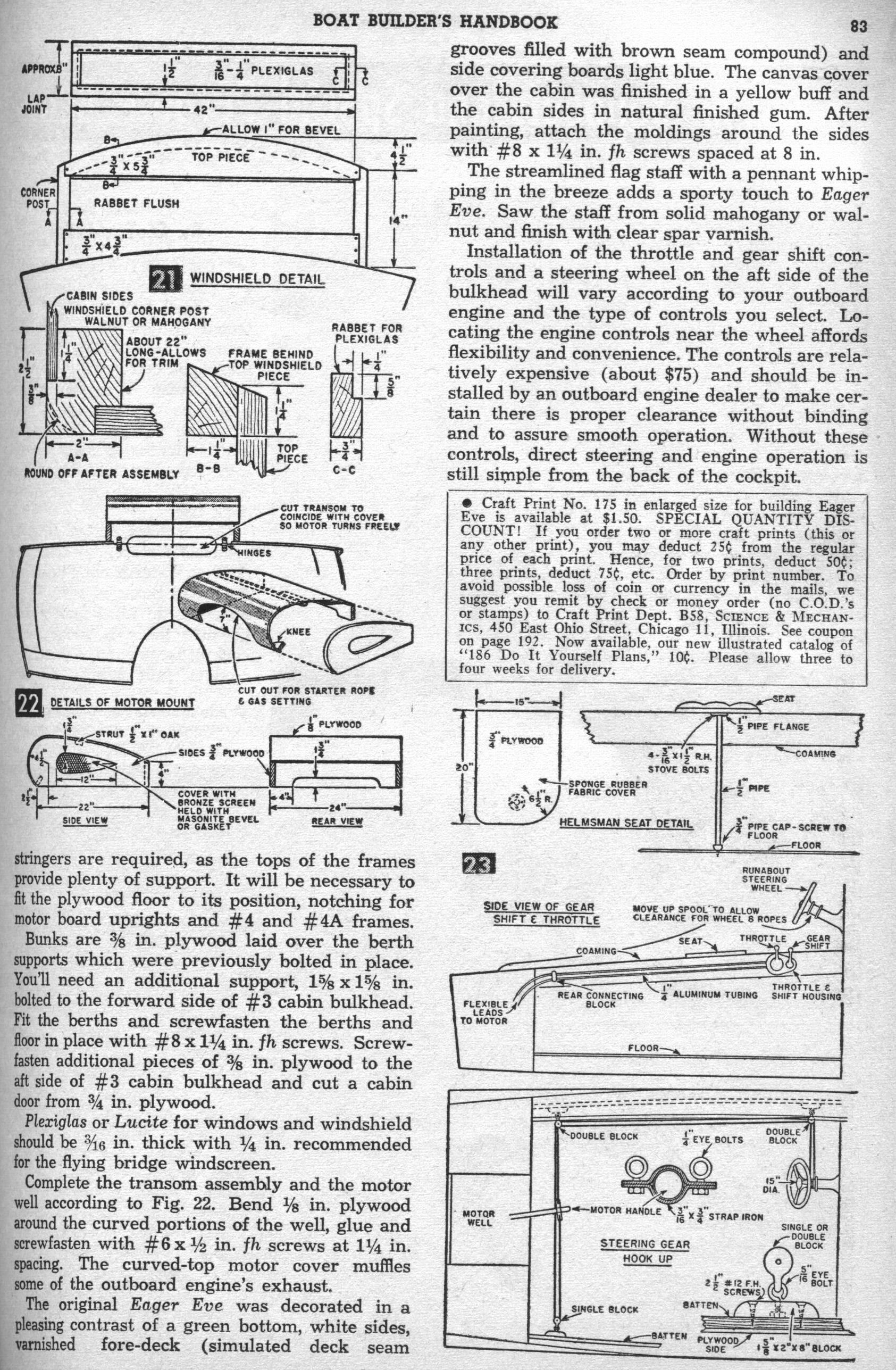

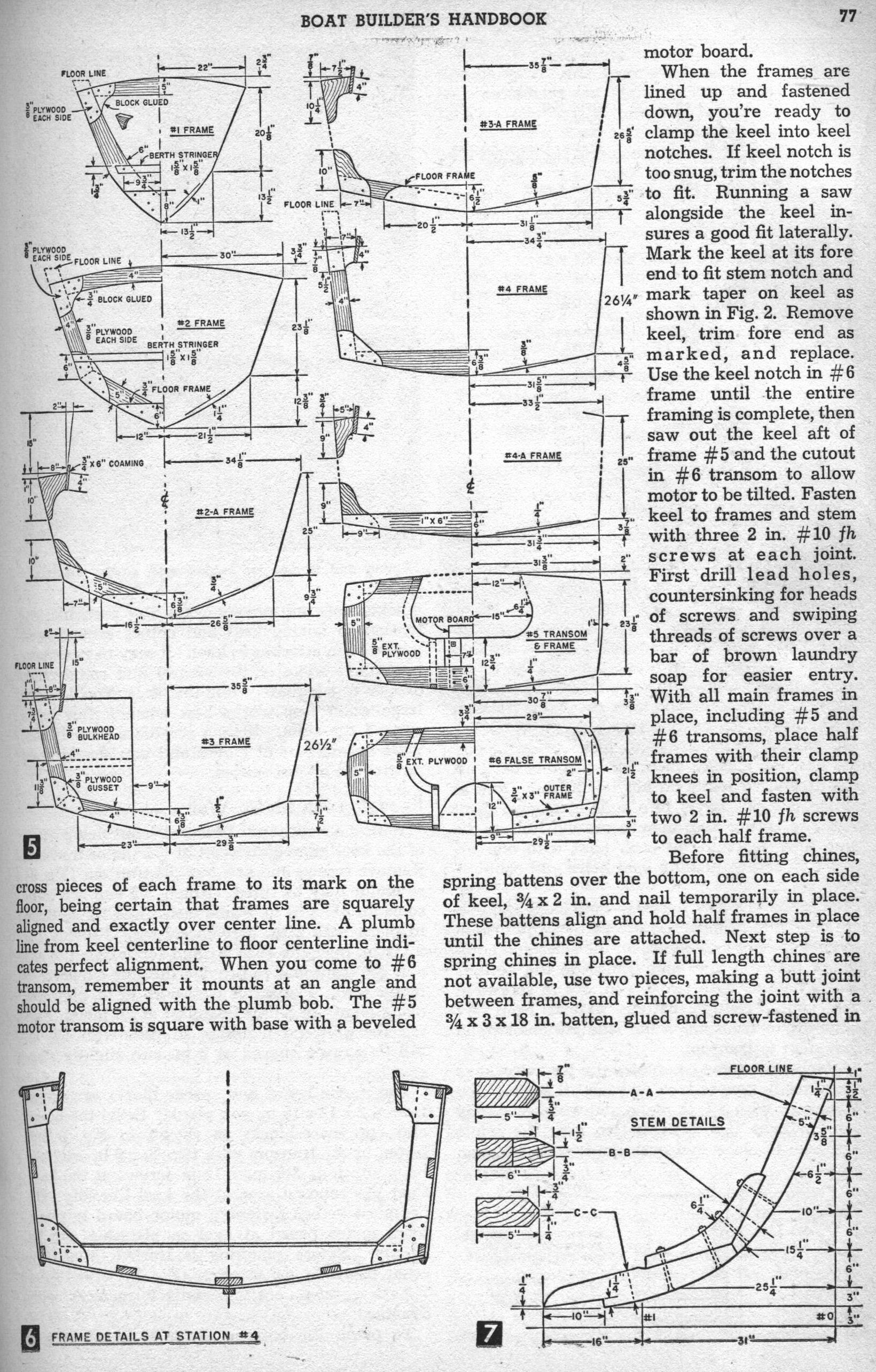

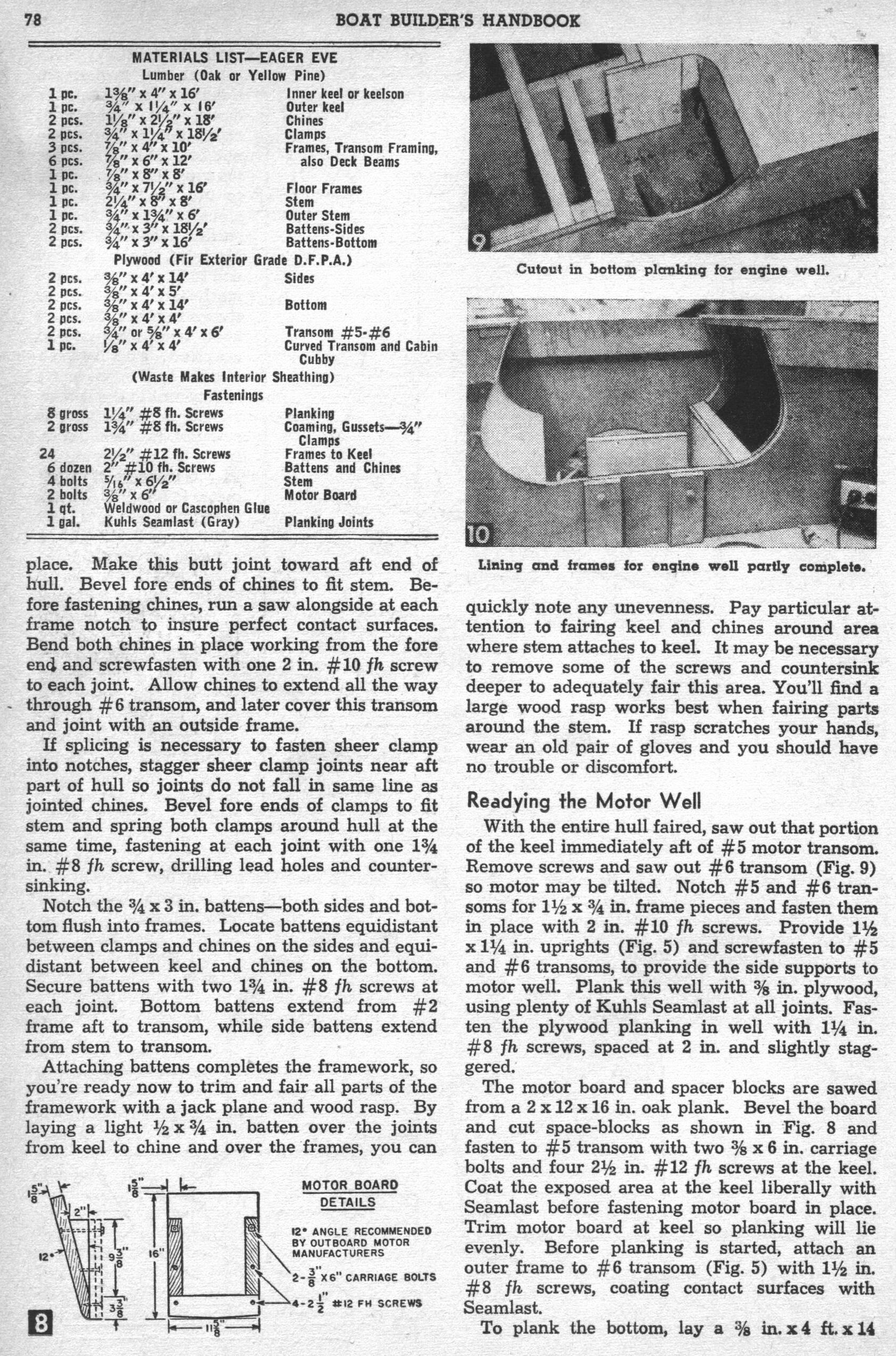

Plan sheets 10
Tap a sheet to open the full-size scan. On a computer, right-click it and choose “Save image as” to keep a copy; on a phone, press and hold.
